Caracteristicas

Especificaciones

Model NO.: QMD15/90/QMD20/82

Power Source: Gas Fire Extinguisher

Operating Temperature Range: -10~+50ºC

Decompression Mode: Pressure Reducing Valve

Filling Capacity of Extinguishing Agent: 19.2kg

Actuator Cylinder Specification: 8L

Storage Pressure of Actuator Cylinder: 6.0MPa

Working Voltage: DC24

Working Current: 1.5A

Spraying Time: ≤60s

Starting Method: Automatic, Manual, Mechanical Emergency

System Type: Unit Independent, Prefabricated Type

Transport Package: Wooden Package

Specification: 20MPa 82L

Trademark: Ying Sui

Origin: China

Agent: Nitrogen

Type: Fire Extinguisher

Object: Class ABC Fires

Size: 20MPa 82L

Certificación: CCC, CE

Portable Extinguisher: Ig100 Extinguishing Equipment

Samples: US$ 100/Piece 1 Piece(Min.Order) | Request Sa

Customization: Available | Customized Request

Información básica

Pago y Envío Términos

Galería

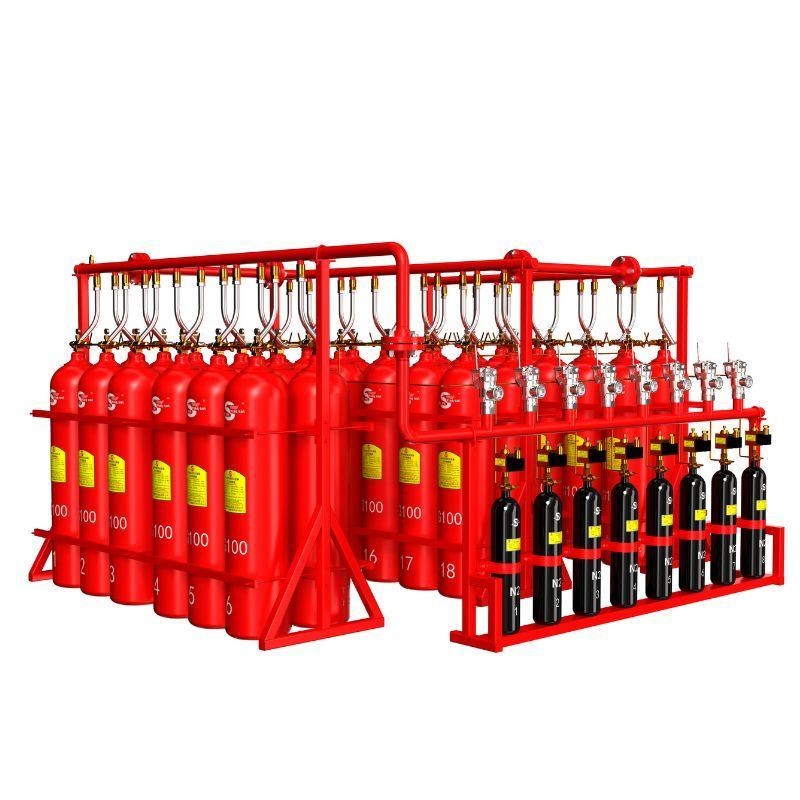

90L Nitrogen100% Clean Agent Fire Extinguishing Equipment

Descripción de producto

90L Nitrogen100% Clean Agent Fire Extinguishing Equipment
IG100 gas extinguishing equipment uses 100% pure nitrogen as extinguishing agent. IG100 fire extinguishing agent is the main component of air, ozone depletion potential value is zero, global warming potential value is zero, atmospheric retention time is zero, without any adverse effect on the environment. IG100 extinguishing agent is colorless, tasteless, non-toxic, non-corrosive, non-conductive; It is not only harmless to human body, but also does not produce any chemical substances in the process of extinguishing the fire, which will not cause secondary pollution to the equipment. There is no atomization phenomenon when spraying, which can ensure the orderly and safe evacuation of personnel. IG100 is 0.97 relative to air, so that it can maintain a constant fire extinguishing concentration after release in the protection zone, so as to ensure the fire extinguishing effect and effectively prevent reignition. IG100 gas fire extinguishing agent is non-toxic and harmless to human body. It is a safe and environmental protection gas fire extinguishing agent. It is suitable for the place where people often work.

Item	QMD15/90	QMD20/82
Operating temperature range(ºC)	-10~+50
Decompression mode	Decompressor	Pressure reducing valve
Storage pressure of fire extinguishing agent cylinder assemblies (+20ºC)MPa	f15	20
Maximum working pressure of fire extinguishing agent cylinder assemblies (+50ºC)MPa	17.2	23.2
Fire extinguishing agent bottle assemblies specifications (L)	90	82
Filling capacity of extinguishing agent (Kg)	16.8	19.2
Actuator cylinder specification(L)	8
Storage pressure of actuator cylinder(+20ºC)MPa	6.0
Maximum operating pressure of actuator cylinder (+20ºC)MPa	6.6
Working voltage(V)	DC24
Working current(A)	1.5A
Spraying time(S)	≤60
Starting method	Automatic, manual, mechanical emergency
System type	Unit independent, combination distribution, prefabricated type

Applications And Hazards Protected By Argon Inert Gas Fire Suppression:

controarchives and libraries
civil and military marine

computer rooms

control rooms

data centers

educational institutions

electric and electronic applications

electrical switch rooms

financial centers and banks

floating roof tanks protection

egenerators

hospitals

hot process areas

laboratories

libraries

machinery spaces

mass transit

medical facilities

military installations

military storage centres

emilitary vehicles

mining facilities

museums and art galleries

nuclear facilities

offices

offshore platforms

oil & gas facilities

pharmaceutical industry

power plants

telecommunication centers

Features And Benefits From Argon Gas Fire Suppression System

Suitable for occupied areas
Electrically non - conductive
Chemically inert
Colourless, odourless and flavourless
No residue to clean up after the discharge
Zero Ozone Depletion Potential (ODP)
No greenhouse effect
No global warming impact
No decomposition products
No fog and no loss of post-discharge visibility
Non corrosive/toxic
Stored as a gas
Suitable for occupied areas
Excellent post-discharge visibility
Very low refill cost.
Easy to obtain anywhere in the world

Only agent approved for automatic use in manned environmentserators

In the event of discharge, the agent is cost effective to replace
No evacuation issues
Cylinders can be remote from the risk
Directional valve solutions to enable mutli-risks to be protected economically using single cylinder bank
Constant flow solution available, therefore reducing size of venting requirement
Large safety margin
Future proof - no risk of being banned
Economical installation costs
Zero Ozone Depletion Potential (ODP)
We simply borrow Nitrogen and Argon from nature.
When released, they automatically return to their natural place in the environment.
Zero Global Warming Potential (GWP)

Nitrogen and Argon have no atmospheric lifetime and zero GWP, so they pose no risk to the environment.
Weight Similar To Air
The weight of inert gas agents corresponds closely to that of normal air and will evacuate a protected area slower than halocarbon agents after a discharge.

No Combustion By-Products Inert gasses do not decompose into toxic or corrosive elements in a fire, making it a safe choice for people and assets.
No Fogging inert gas systems is ideal for occupied spaces because escape routes remain visible during, and after a discharge.
No Residue That means no damage to your equipment and no clean up required
Electrically Non-conductive It is electrically non-conductive and is therefore highly recommended for protecting electrical and electronic materials.

Minimal Thermal Shock When discharged, inert gasses cause the least amount of thermal shock (sudden temperature drop), compared to other clean agents.hospitals
