Caracteristicas

Especificaciones

Model NO.: ZD0.3/85

Power Source: Gas Fire Extinguisher

Nitrogen Supply Pressure: 0.3MPa

Nitrogen Purity: >=95%

Operating Temperature Range: -10~+50ºC

Ambient Relative Humidity: ≯85%

Nitrogen Supply Capacity: 85m³/H

Applicable Hazard Volume: 6000m³

Voltage: AC380

Power: 22kw

System Boot Mode: Automatic and Manual

Noise: ≤90A

Transport Package: Wooden Package

Specification: 0.3MPa 85m³ /h

Trademark: Ying Sui

Origin: China

HS Code: 8705309000

Supply Ability: 6000pieces/Year

Agent: Nitrogen

Type: Fire Extinguisher

Object: Class a/B/C Fires

Size: 0.3MPa 85m³/H

Certificación: CCC, CE

Portable Extinguisher: Nitrogen Injection Oxygen Control Fire Prevention

Samples: US$ 100/Piece 1 Piece(Min.Order) | Request Sa

Customization: Available | Customized Request

Información básica

Pago y Envío Términos

Galería

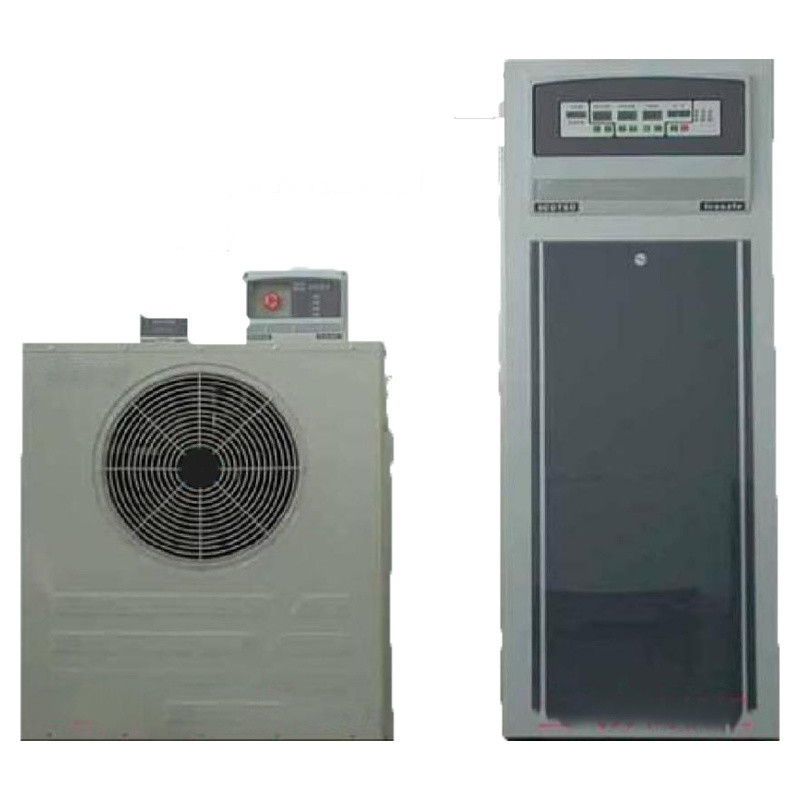

Combination Distribution Nitrogen Injection Oxygen Control Fire Prevention System for Warehouses

Descripción de producto

Combination distribution Nitrogen injection oxygen control fire prevention system for warehouses

Nitrogen injection oxygen control fire prevention system with air as raw material, nitrogen and oxygen in the air are separated by the gas separation unit, and nitrogen is injected into the protection area to inhibit oxygen concentration, so that the combustible in the protection area will not burn. It is suitable for Electrical equipment places with solid, liquid and gas combustibles; Unattended and unattended places (such as oil storage tanks, dangerous goods warehouses, etc.); Places where people stay for a short time (such as computer rooms, power distribution rooms, cable interlayers, cable slots, cable tunnels, warehouses, archives, tobacco warehouses, collections, cultural relics, communication and telecommunication equipment rooms, etc.); A place without adverse effects in a low oxygen environment;

Item	ZD0.3/3	ZD0.3/6	ZD0.3/18	ZD0.3/30		ZD0.3/60	ZD0.3/85	ZD0.3/120
Nitrogen supply pressure (MPa)	0.3
Nitrogen purity	≥95%
Operating temperature range(ºC)	-15~+50
Ambient relative humidity	≯85%
Nitrogen supply capacity(m3/h)	3	6	18	30		60	85	120
Applicable hazard volume(m3)	100	180	540	1800		3600	6000	8000
Voltage(V)	AC220/AC380				AC380(Three-phase five-wire system)
Power(kW)	1.1	2.2	4	7.5		15	22	30
System boot mode	Automatic and manual
Noise dB(A)	≤90

Combination Distribution Nitrogen Injection Oxygen Control Fire Prevention System for Warehouses Applications And Hazards Protected By Argon Inert Gas Fire Suppression:

controarchives and libraries
civil and military marine

computer rooms

control rooms

data centers

educational institutions

electric and electronic applications

electrical switch rooms

financial centers and banks

floating roof tanks protection

egenerators

hospitals

hot process areas

laboratories

libraries

machinery spaces

mass transit

medical facilities

military installations

military storage centres

emilitary vehicles

mining facilities

museums and art galleries

nuclear facilities

offices

offshore platforms

oil & gas facilities

pharmaceutical industry

power plants

telecommunication centers

Features And Benefits From Argon Gas Fire Suppression System

Suitable for occupied areas
Electrically non - conductive
Chemically inert
Colourless, odourless and flavourless
No residue to clean up after the discharge
Zero Ozone Depletion Potential (ODP)
No greenhouse effect
No global warming impact
No decomposition products
No fog and no loss of post-discharge visibility
Non corrosive/toxic
Stored as a gas
Suitable for occupied areas
Excellent post-discharge visibility
Very low refill cost.
Easy to obtain anywhere in the world

Only agent approved for automatic use in manned environmentserators

In the event of discharge, the agent is cost effective to replace
No evacuation issues
Cylinders can be remote from the risk
Directional valve solutions to enable mutli-risks to be protected economically using single cylinder bank
Constant flow solution available, therefore reducing size of venting requirement
Large safety margin
Future proof - no risk of being banned
Economical installation costs
Zero Ozone Depletion Potential (ODP)
We simply borrow Nitrogen and Argon from nature.
When released, they automatically return to their natural place in the environment.
Zero Global Warming Potential (GWP)

Nitrogen and Argon have no atmospheric lifetime and zero GWP, so they pose no risk to the environment.
Weight Similar To Air
The weight of inert gas agents corresponds closely to that of normal air and will evacuate a protected area slower than halocarbon agents after a discharge.

No Combustion By-Products Inert gasses do not decompose into toxic or corrosive elements in a fire, making it a safe choice for people and assets.
No Fogging inert gas systems is ideal for occupied spaces because escape routes remain visible during, and after a discharge.
No Residue That means no damage to your equipment and no clean up required
Electrically Non-conductive It is electrically non-conductive and is therefore highly recommended for protecting electrical and electronic materials.

Minimal Thermal Shock When discharged, inert gasses cause the least amount of thermal shock (sudden temperature drop), compared to other clean agents.hospitals
