Caracteristicas Galería Descripción de producto Pida una cita

Caracteristicas

Especificaciones

Model NO.: PF8

Durable Time: >=15min

Transport Package: Wooden Package

Specification: PF8

Trademark: Ying Sui

Origin: China

Rated Working Pressure: 0.5MPa

Pressure Range: 0.3~0.8MPa

Rated Flow: 8L/S

Flow Coefficient: 215

Expansion Ratio: 532~648

Frothing Volume: 197~397m³/H

Samples: US$ 100/Piece 1 Piece(Min.Order) | Request Sa

Customization: Available | Customized Request

Información básica

Pago y Envío Términos

Galería

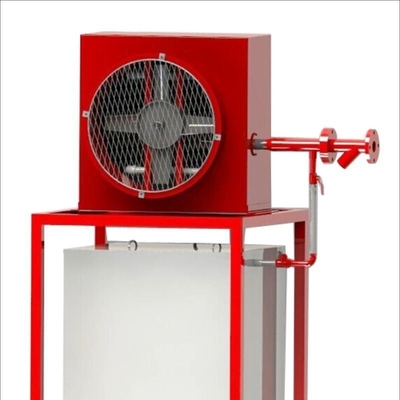

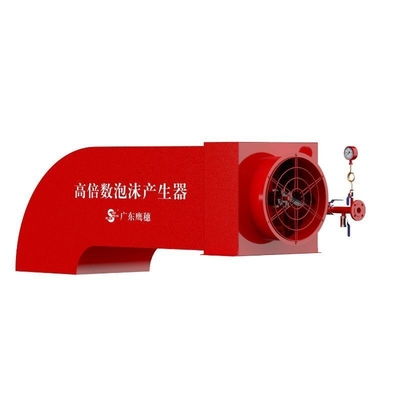

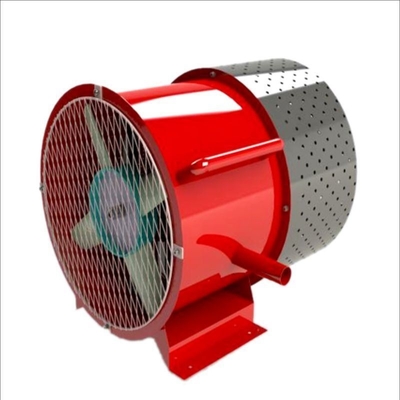

High Expansion Ratio Foam Generator Chamber for PF8 Fire Fighting Pcl Foam Concentrate

Descripción de producto

Fire Fighting Pcl High Expansion Foam Generator Chamber for Foam Concentrate
The high expansion foam forming equipment is a key component of generating and spraying foam in the high expansion foam extinguishing system. It can mix the foam mixture with air in a short time to form a large amount of foam, which can quickly cover the fire area and isolate it from the air, so as to achieve the purpose of fire extinguishing. High multiple foam water consumption is very little, water damage loss is less, can effectively eliminate smoke and gas, suitable for full or partial flooding fire extinguishing in limited space. It is suitable for warehouse, garage, liquefied gas station, liquid collecting tank, chemical workshop, passenger and cargo ship, large coal yard, large garbage yard, etc.

Item	PF4	PF3-H	PF4-H	PF4-G-H	PF6	PF8	PF10
Rated working pressure (MPa)	0.9	0.5
Pressure range (MPa)	0.4~1.0	0.3~0.8
Rated flow (L/s)	4	3	4	4	6	8	10
Flow coefficient	80	80.5	107	107.3	161	215	268
Expansion ratio	220~340	565~636	390~535	747-920	705~907	532~648	603~640
Frothing volume (m3/h)	35~87.5	75.6~140	72~154.3	142.5~265	198.8~397.8	197~397	280~472.3
50% Durable time	≥6.9min	≥5.1min		≥25.5min	≥15min
