Caracteristicas Galería Descripción de producto Pida una cita

Caracteristicas

Especificaciones

Model NO.: YGFZ500/1000/2000/3000

Power Source: Gas Fire Extinguisher

Working Pressure Range: 0.5~1.7MPa

Supercharging Time: ≤20s

Spraying Time: >=60s

Residual Powder Ratio: ≤10%

Operating Temperature Range: -20~+50ºC

System Boot Mode: Automatic, Manual, Mechanical Emergency

Dry Powder Tank Volume: 1.4m³

Dry Powder Tank Design Pressure: 1.8MPa

Dry Powder Tank Working Pressure: 1.6MPa

Transport Package: Wooden Package

Specification: 1000kg

Trademark: Ying Sui

Origin: China

Agent: Dry Powder

Type: Moveable Fire Extinguisher

Object: Class ABC/Bc Fires

Size: 1000kg

Certificación: CCC, CE

Portable Extinguisher: Mobile Dry Powder Fire Extinguishing Equipment

Samples: US$ 100/Piece 1 Piece(Min.Order) | Request Sa

Customization: Available | Customized Request

Información básica

Pago y Envío Términos

Galería

Portable Extinguisher Mobile Powder Fire Extinguishing Equipment with Dry Powder Tank

Descripción de producto

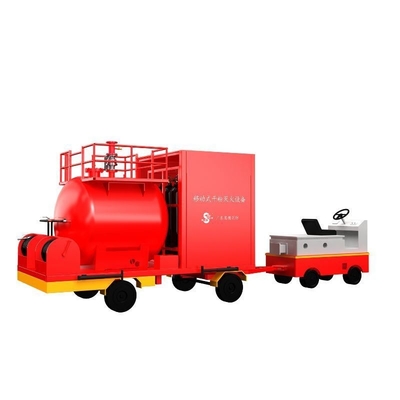

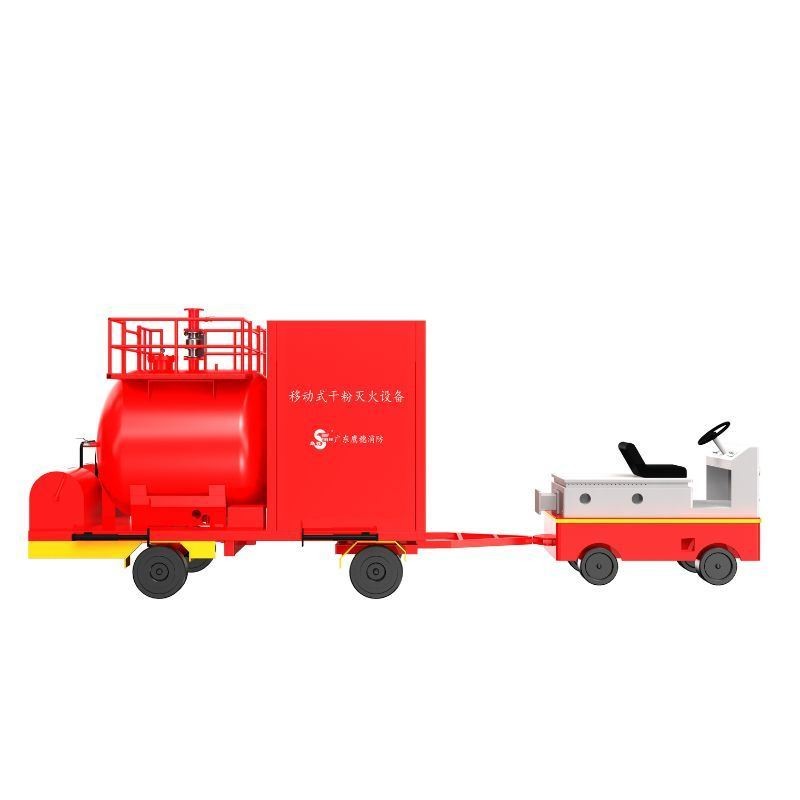

Mobile Powder Fire Extinguishing Equipment Trolley Mounted Monitor with Powder Storage Tank
Dry powder extinguishing equipment is a kind of equipment that provides pressure to the dry powder tank and pushes the dry powder extinguishing agent to be transported to the dry powder spraying device through the pipeline, which is used to fight solid, oil, gas and electrical fires.
It has the advantages of short fire extinguishing time, high efficiency, good fire extinguishing effect on petroleum and petroleum products, good insulation performance, can put out live equipment fire, after extinguishing, less pollution to machinery and equipment, long distance transportation, cold area use without antifreeze, fire extinguishing agent can be stored for a long time without deterioration and failure, suitable for water shortage areas, etc.

Item		YGFZ500	YGFZ1000	YGFZ2000	YGFZ3000
Dry powder filling amount(Kg)		500	1000	2000	3000
Fire class		BC/ABC
Working pressure range(MPa)		0.5~1.7
Supercharging time(s)		≤20
Spraying time(s)		≥60
Residual powder ratio		≤10%
Operating temperature range(ºC)		-20~+50
System boot mode		Automatic, manual, mechanical emergency
Dry powder tank	Volume(m3)	0.75	1.4	2.2	3.5
	Design pressure(MPa)	1.6	1.8	1.6
	Working pressure(MPa)	1.5	1.6	1.55
Expellant gas cylinder	Gas type	N2
	Volume(L)	70
	Number of cylinders	2	4	9	13
	Filling pressure (+20ºC)MPa	13.5
Starting cylinder	Gas type	N2
	Volume(L)	8
	Filling pressure (+20ºC)MPa	6.0
